Short Description:

The embossed Galvanized steel phenolic air duct sheet is a new generation evolution product of traditional iron sheet air duct. The outer layer of the air duct board is made of galvanized embossed steel plate, the inner layer is coated with anticorrosive aluminum foil, and the middle is composited with phenolic foam. In addition to the advantages of traditional iron sheet air ducts of good rigidity and high strength, it also has the properties of flame retardant heat preservation, sound absorption and noise reduction. Moreover, after the pipe is formed, no secondary heat preservation is required, which overcomes the weakness of the traditional iron sheet air duct that the outer heat preservation layer is easily damaged, has a longer service life, and is beautiful and generous.


Product Detail

Product Tags

Related Video

Feedback (2)

We have been ready to share our knowledge of internet marketing worldwide and recommend you suitable merchandise at most aggressive rates. So Profi Tools present you very best price of money and we are ready to develop alongside one another with Phenolic Air Duct Panel , Rigid Foam Insulation Basement , External Insulation Board , In case you are on the lookout for a high quality, quick delivery, very best after support and great value supplier in China for long-term small business connection, we'll be your best choice.
Wholesale China Insulating Basement Walls With Foam Board Factory Quotes - Rigid PU Composite Insulation Board Series - ZDW | zdw insulation Detail:

Product Description

The rigid foam polyurethane composite insulation board is an insulation board with rigid foam polyurethane insulation material as the core material and a cement-based protective layer on both sides. It adopts continuous production equipment-secondary molding, which not only meets the high standards of building energy-saving insulation, but also enhances The stability of the system; the board has dual interfaces when it leaves the factory, which can effectively avoid the fire caused by cigarette butts and electric welding during the transportation, construction site stacking and wall construction; rigid foam polyurethane is a thermosetting material and will not be exposed to fire. Melting, no burning droplets, no flame propagation after forming the system, greatly improving the fire resistance during use. The double-sided cement-based surface layer can enhance the bonding strength of the insulation board, the adhesive and the plastering mortar, thereby ensuring the integrity and stability of the system.

Technical Indicators

item unit Technical Data
Density ≥ kg/m3 ≥35kg/m3
thermal conductivity ≤ W(m.K) 0.021W(m.K)
Water absorption rate ≤ % 3%
Flammability rating B1 B2
compressive strength≥ Kpa ≥150KPa

Product specifications

(mm)Length (mm)Width (mm)Thickness
1200 600 10-100

Product category

01| Thermal insulation

Rigid polyurethane foam has a highly cross-linked structure, basically closed-cell (opening rate 5%), and extremely low thermal conductivity, only 0.021W/(m.K).

02| Economy

It has a long use time and good thermal insulation performance. Its thickness is 2/3 thinner than thermal insulation slurry and 1/3 thinner than polystyrene board. The comprehensive cost performance per unit square area is excellent.

03|stability

Polyurethane rigid foam mainly adopts special halogen-free flame-retardant polyether polyol, and adds a phosphorus-based flame retardant with a synergistic effect to achieve a halogen-free flame-retardant structure in the foam molecules without increasing the amount of isocyanate. The flame-retardant performance has reached the B1 standard; the polyurethane external wall insulation system has passed multi-project and multi-system demonstration, and there will be no phenomenon of insulation material falling off after engineering application.

04|Environmental protection

Adopting fluorine-free foaming technology and aldehyde-free products, it belongs to green building materials.

05|Durability

It has good chemical resistance and can be used for a long time at a temperature of -180°C ~150C. It has excellent weather resistance and freeze-thaw resistance and can be used for up to 50 years.

06|Construction

The construction process is simple, safe and reliable, and different construction processes can be selected for different purposes.

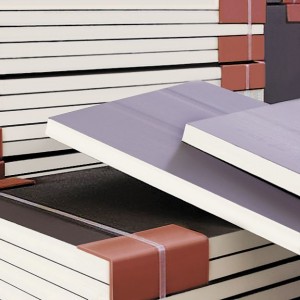

Product detail pictures:

Wholesale China Insulating Basement Walls With Foam Board Factory Quotes - Rigid PU Composite Insulation Board Series - ZDW | zdw insulation detail pictures

Wholesale China Insulating Basement Walls With Foam Board Factory Quotes - Rigid PU Composite Insulation Board Series - ZDW | zdw insulation detail pictures
