Short Description:

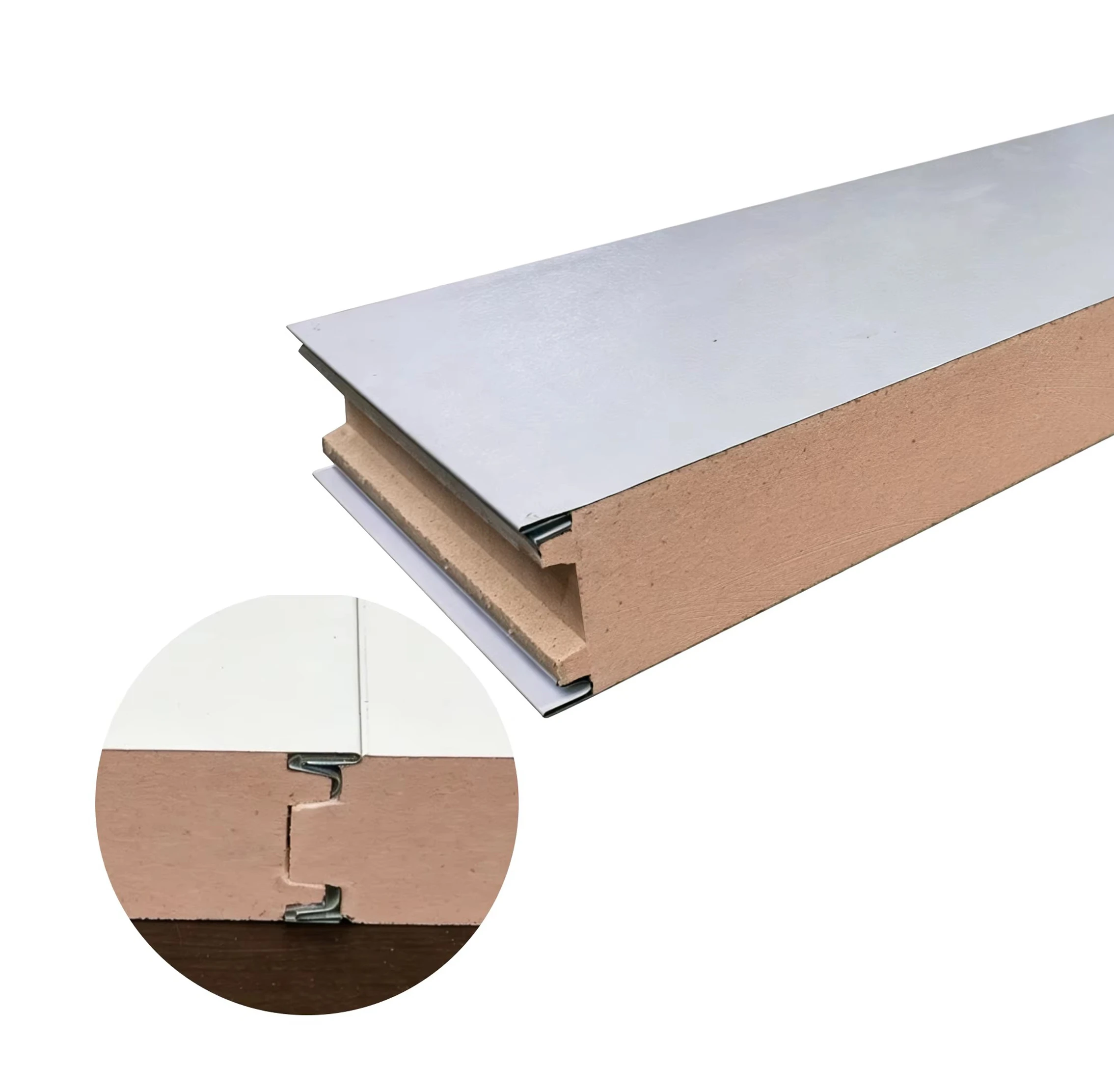

Metal-faced phenolic sandwich panels are manufactured through a continuous lamination process using automated equipment, featuring color-coated steel sheets as facings and modified phenolic insulation boards as the core material. These panels offer excellent fire resistance and thermal insulation properties, making them suitable for buildings with stringent fire safety requirements, such as cold storage facilities, temperature-controlled warehouses, cleanrooms, and insulated modular buildings.

Product Detail

Product Tags

Performance Characteristics

  1. Flame Retardancy & Fire Resistance: Stable performance at high temperatures; does not shrink or drip; inhibits flame spread; achieves Class A fire safety rating.
  2. Excellent Thermal Insulation: Thermal conductivity comparable to polyurethane, offering outstanding thermal insulation performance.
  3. Superior Dimensional Stability: Resistant to deformation and shrinkage; suitable for a wide range of applications; long service life.
  4. Eco-friendly: Does not release toxic or harmful gases at high temperatures.
  5. Multifunctional: Combines thermal insulation, soundproofing, fire resistance, and decorative capabilities; eliminates the need for additional finishing.
  6. Quick Installation: Shortens construction time and offers excellent overall cost-effectiveness.
ItemSpecification
DensityCustomized according to customer requirements
Combustion PerformanceClass A
Thermal Conductivity0.022 W/(m·K)
Oxygen Index≥ 40
