Short Description:

Zhongtian New Materials’ polyurethane (PU) foam cold storage panel is a high-quality insulation panel designed specifically for freezing and refrigeration systems.
The product features a core of premium, highly flame-retardant polyurethane foam and facings made of color-coated steel, stainless steel, or galvanized steel (Al-Zn alloy substrate), manufactured through a single-step lamination process on a continuous production line imported from Germany. The core material offers uniform density, excellent flame retardancy, and low thermal conductivity, while the panel as a whole provides moisture resistance, corrosion resistance, structural rigidity, and high compressive strength. A deep tongue-and-groove joint design ensures effective thermal insulation and airtightness at the seams, thereby enhancing the operational efficiency and service life of the refrigeration system. These panels are widely used in low- and high-temperature cold storage facilities, controlled-atmosphere storage, and large-to-medium-scale logistics warehouses across sectors such as food, pharmaceuticals, supermarkets, industry, and warehousing.

Product Detail

Product Tags

Performance Characteristics

  1. Energy Efficiency and Thermal Insulation: Manufactured using a German-imported continuous production line and a CFC-free foaming process. The panels feature a fine cell structure, uniform density, and a void-free interior, delivering exceptional thermal insulation performance.

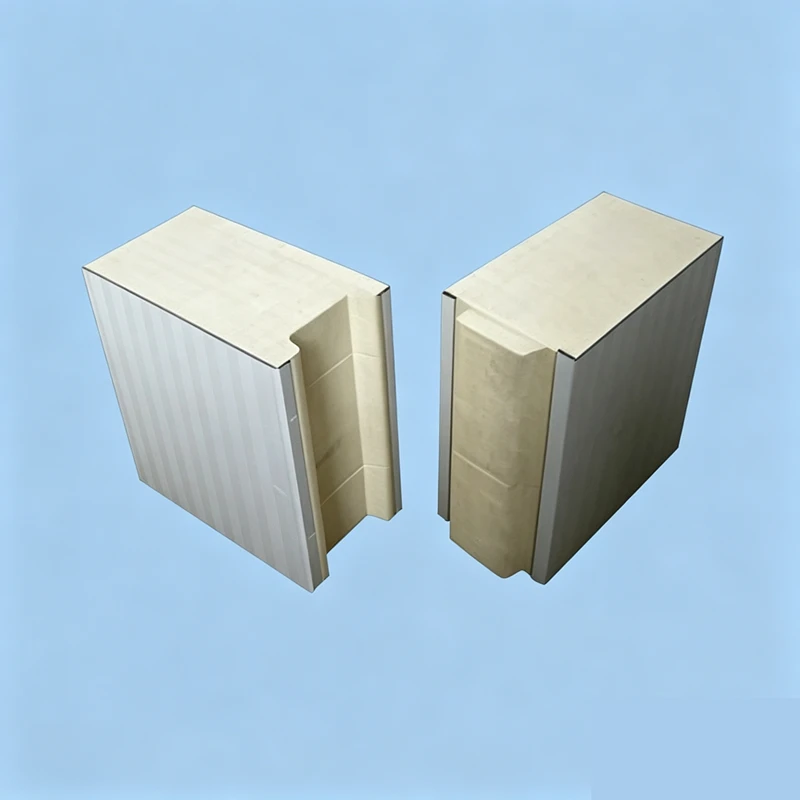

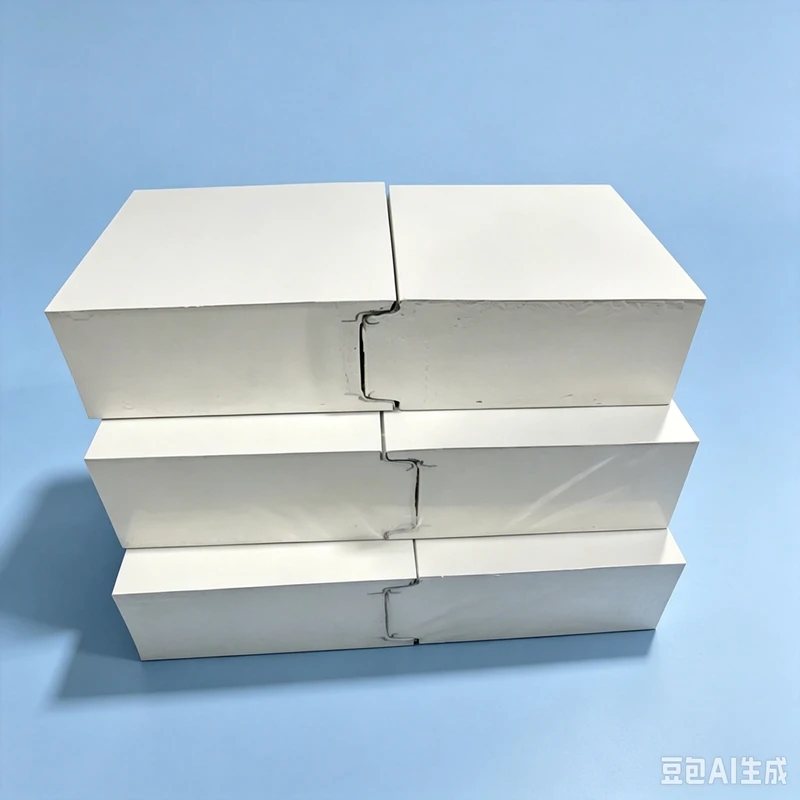

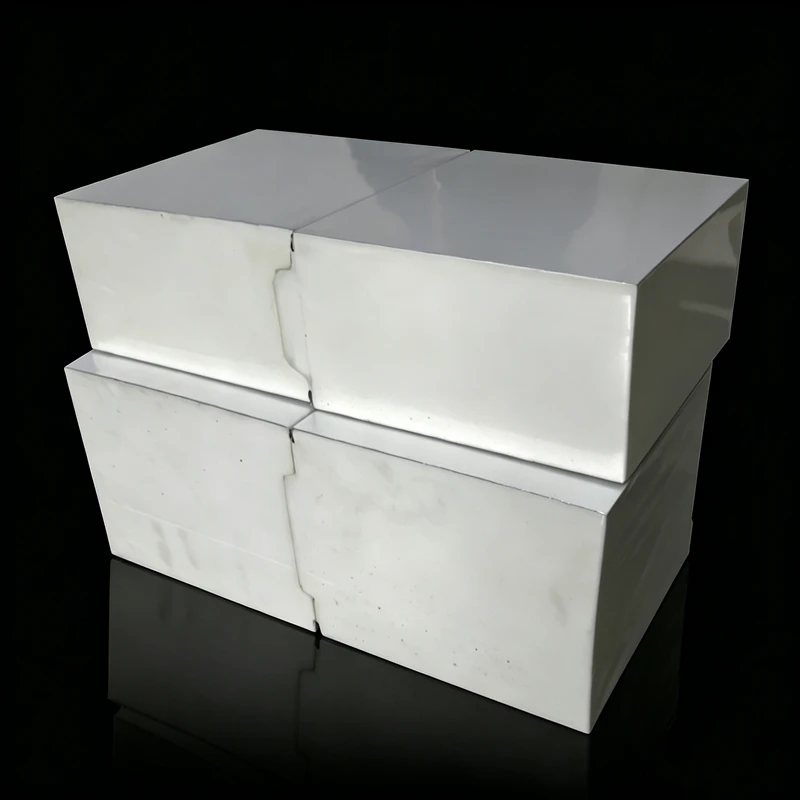

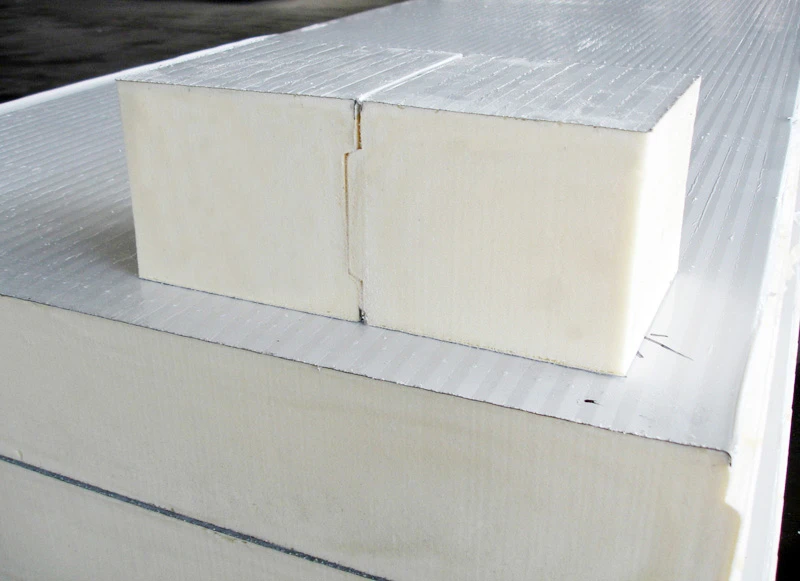

  2. Superior Thermal Insulation and Airtightness: A deep tongue-and-groove joint design ensures a tight connection between panels, resulting in excellent overall thermal insulation and airtightness for the cold storage structure.
  3. Robustness and Safety: Utilizes an interlocking tongue-and-groove connection system with an insertion depth of 20–30 mm, ensuring high structural strength whether used for walls or ceilings. Specialized accessories and unique installation methods are provided for wall-to-ceiling joints, wall-to-steel-frame anchoring, and ceiling panel suspension, guaranteeing the cold storage unit’s thermal efficiency, airtightness, structural integrity, and safety.
  4. Cost-Effective and Aesthetic: Panel lengths can be custom-cut to meet specific client requirements; a wide range of panel profiles and colors is available, supporting personalized, custom designs.
ItemPolyurethane Cold Storage Panel
Effective Width1120 mm
Expanded Width1200 mm
Surface FinishVertical corrugated, flat pressed rib, smooth flat
Panel Thickness0.4 – 0.8 mm
Panel TypeColor-coated sheet, Galvanized / Aluzinc sheet, Stainless steel sheet
Panel CoatingPVDF (polyvinylidene fluoride), HDP (high-durability polyester), SMP (silicone-modified polyester), PE (polyester)
Panel Metallic CoatingZinc coating, Aluzinc coating
Recommended ManufacturersBlueScope, Baosteel, Yieh Phui (Yehui), Guanzhou, etc.
Standard ColorsWhite-grey, Sea blue
Core MaterialPolyisocyanurate (PIR)
Density≥ 40 kg/m³
Compressive Strength≥ 150 kPa
Thermal Conductivity≤ 0.022 W/(m·K)
Water Absorption≤ 3 %
Fire Retardant GradeB1, B2
Overall Panel Thickness50, 75, 100, 120, 150, 180, 200, 220, 250 mm
Operating Temperature−80 ~ 120 °C
